cup counting and packing machine
{-stralt-}

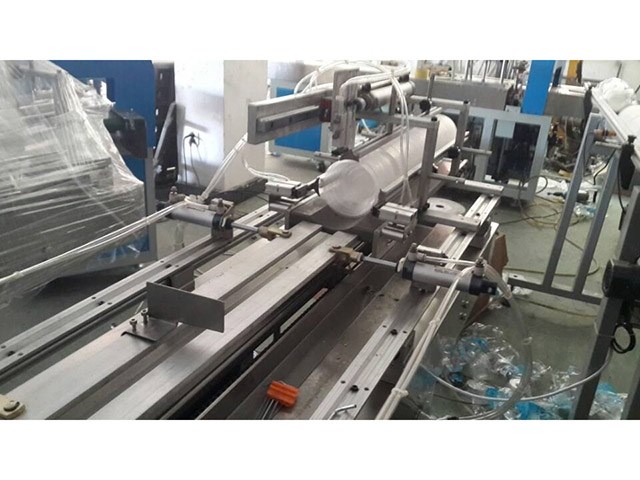

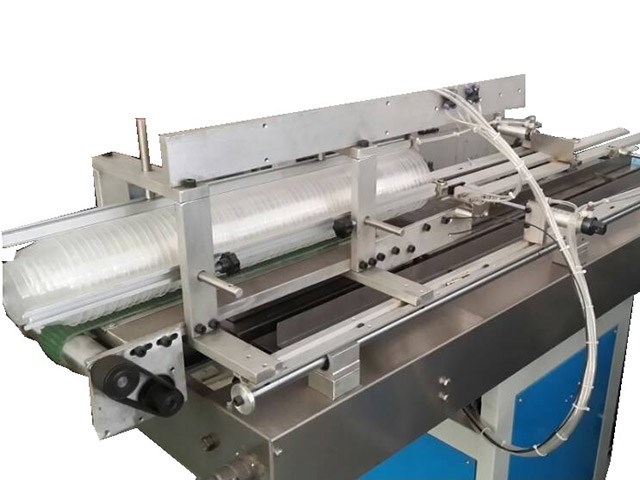

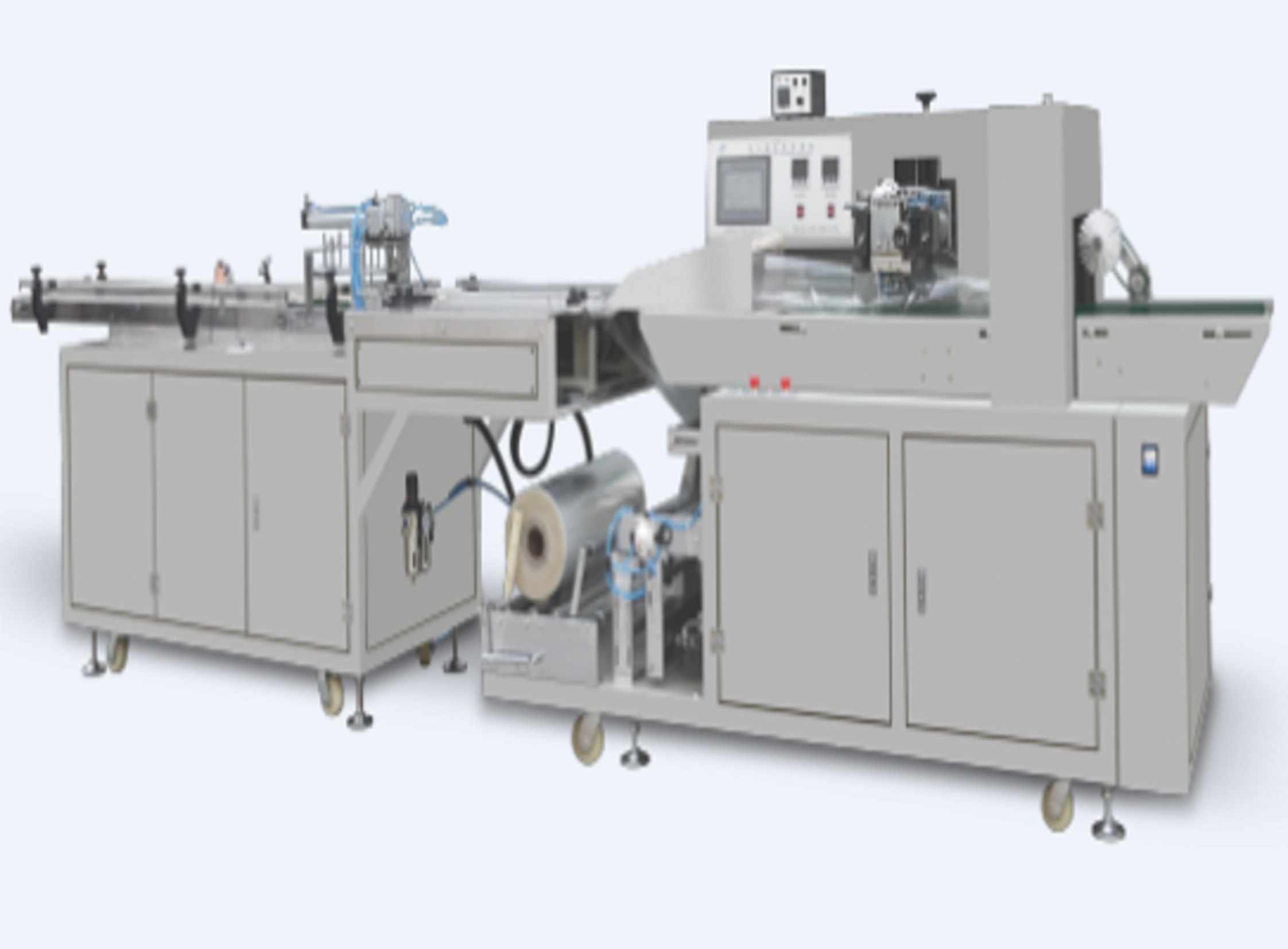

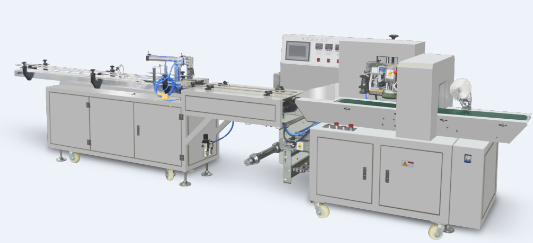

cup counting and packing machine

Suitable for counting and packing single cup-roll and double cup-roll .
Counting cups by optical fiber or by servo
Optical Fiber can be suitable for counting and packing containers .

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】
【Next Products】
Description

Device Video: video 1 ,video 2 ,video 3 ,video 4

Design Feature

Suitable for counting and packing single cup-roll and double cup-roll .

Counting cups by optical fiber or by servo

Optical Fiber can be suitable for counting and packing containers .

Pneumatic sealing clamping ( servo clamping is avaliable )

.Hole making for air leakage from bag ,easier for packing in carton

.Automatically countting and bagging cups with Bopp and LDPE film

. Precise acounting accuracy utilizing Servo Motor or Optical Fiber

Unreeling film by Servo motor

Film transportation driven by Servo motor

Transportation of Cups rolles utilizing servo motor


.Packing will automatically stops when there is no cup in machine.
.Touch Screen and PLC control


Directly use film for bagging without need of buying plastic bags for bagging.

. Graphic layout of all alerts, sensors ,motor for easier operation and diagnosing problem

Specification

LX560-S

LX560-O

Counting Method

Servo motor

Optical Fiber

Suitable Items

Cup

Cup and container

Gap bettween two cups

1.5mm minimum

3mm minimum

Cup Diameter

50mm- 70mm,70-110mm other diamter at request

Required film thickness

LDPE Min.0.002mm

Cup Counting Speed

30-40cups/second

Packing Speed

30packs/min,

Packing Roll

1 roll and 2 rolles or 3and4 roll at request

Film width

Max.560mm

Packing speed

30 packs/min (1 roll Max) and 20 packs/min(2 roll Max.)

Plastic film

LDPE and BOPP hot sealing type film and CPP

Power Supply

1Ph ,220V ,50HZ other voltageat request

Power Consumption

0.5 Kilowatts/hr Average

Power Load

2Kilowatts

Air Pressure

0.4Mpa /min.

Air consumption

0.2-0.25 m3/min

Machine Dimensions

6400mm*650mm*1200m

Machine Weight

400kg
