By taking advantage of tilting movement of the forming table, stacking directly and precisely from mould, tilt-mold thermoforming machine produces plastic disposable cups, containers , lids, and trays etc. completely automatically
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | |
| 【Next Products】 | |

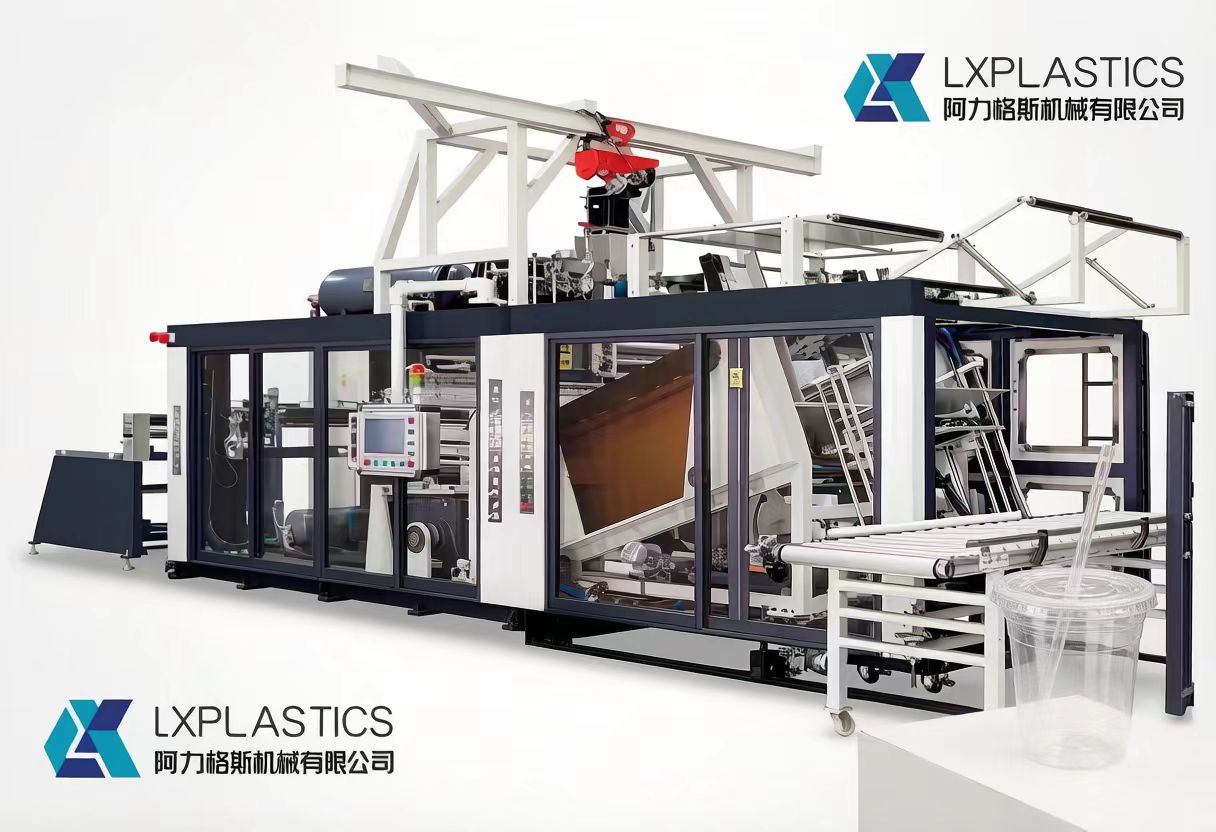

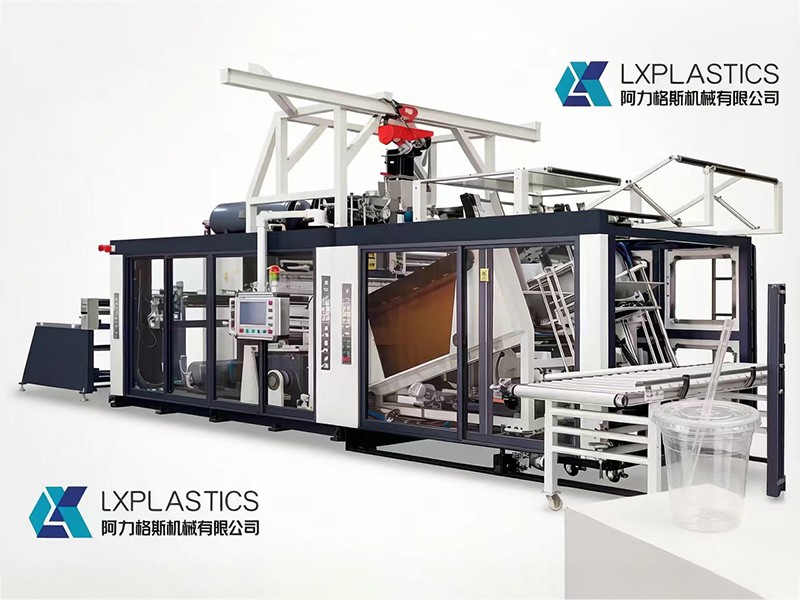

Tilt-Mold Cup Thermoforming machine for cup&glass production

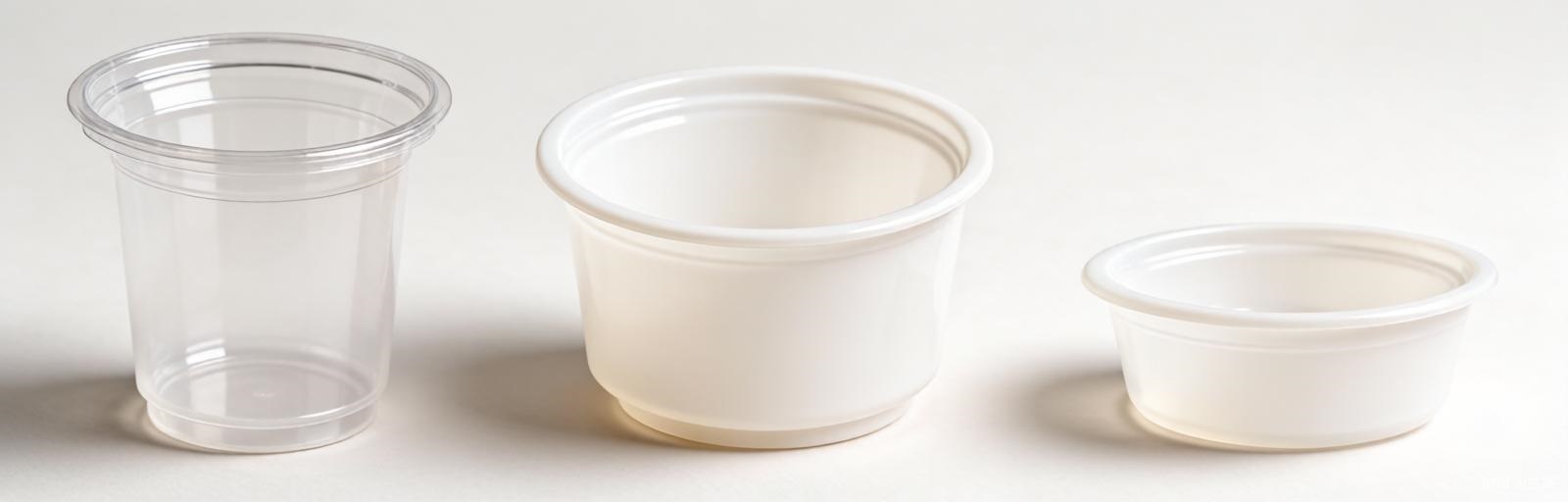

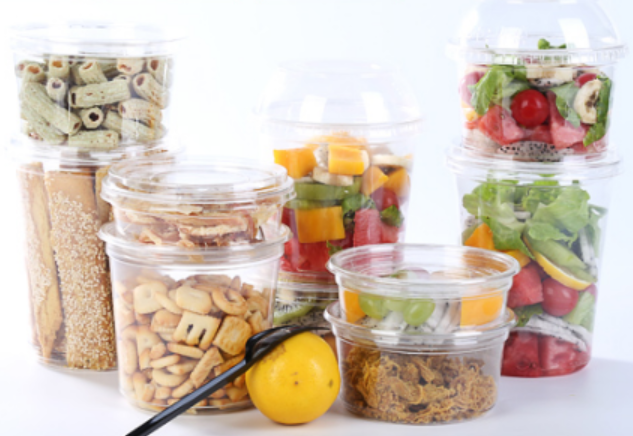

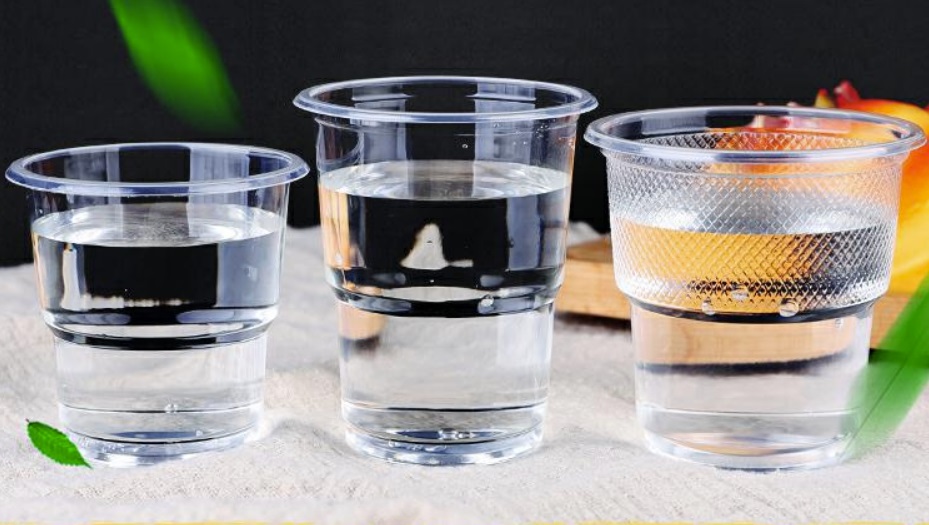

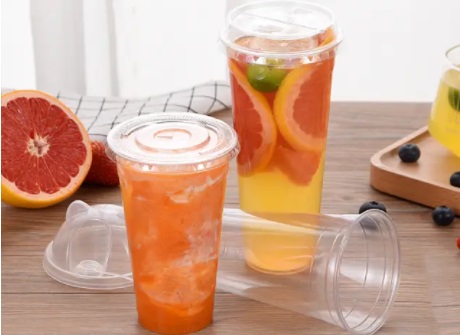

What can it make/功能
Main Technical Data/参数
Specification |
70model |
74 model |
75 Model |
Forming area |
700*360mm |
740*480mm |
750*560mm |
Forming Depth |
180mm Max. |
180mm Max. |
180mm Max. |
Suitable material |
PP PS PET PLA |
PP PS PET PLA |
PP PS PET PLA |
Material Thickness |
0.3-2.5mm |
0.3-2.5mm |
0.3-2.5mm |
Speed |
30cycles/min Max. |
30cycles/min Max. |
30cycles/min Max. |
Practical Case of Cavity number for cup(glass) |
|||
Cavity No. For 70mm Dia |
30-34cavity |
38-43cavity |
51cavity |
Cavity No. For 90-98mm Dia |
17-20cavity |
22-26cavity |
33cavity |

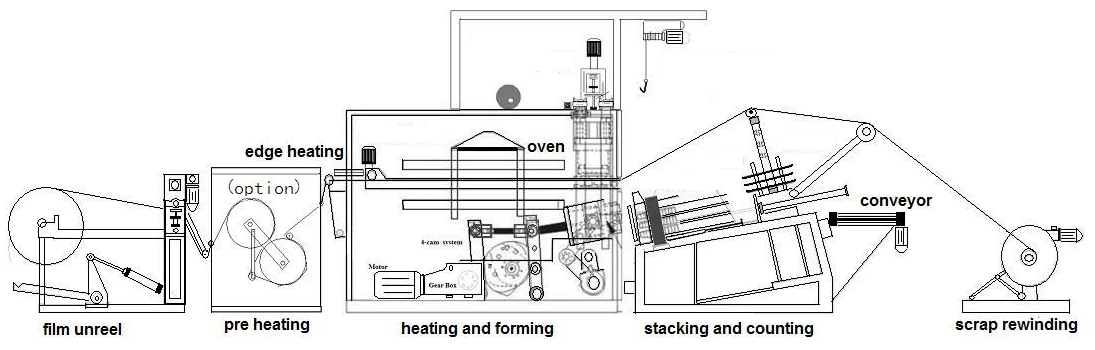

How it works /工作原理

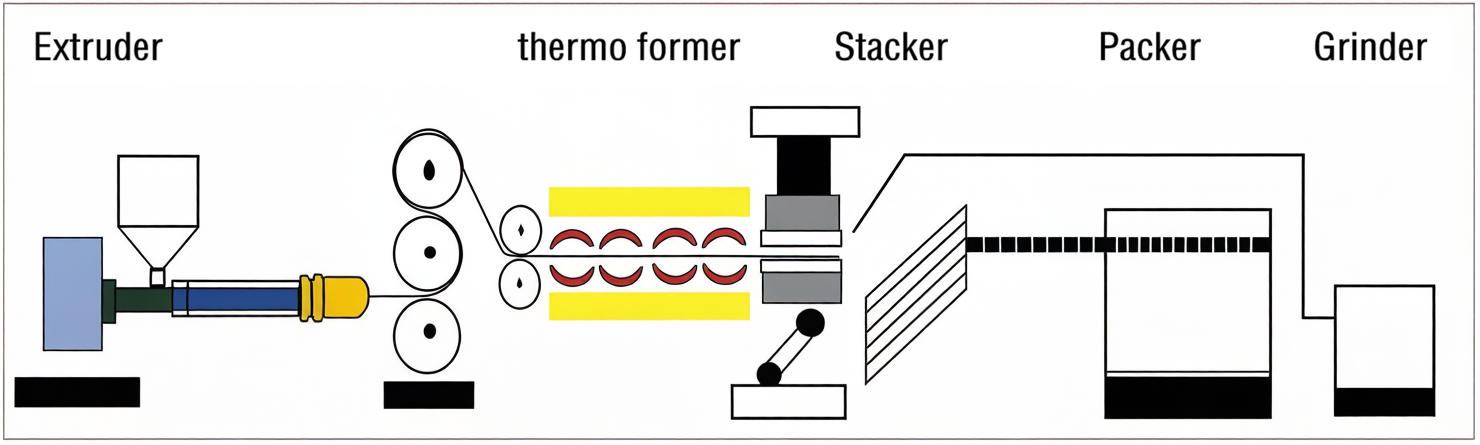

In-line Process/联机
Option&Auxiliary/辅机
In-line Grinder with cyclone |
Traveling crane for easy tool-change +lower mould changing device |
Cup Lip-Rim Machine |
in-line cup packing |
PP Pre-heater for sheet with high thickness |
Machine for carton open&fill&seal |
Design Feature/特色
.Pressure Form+Vacuum form
.Pick-up cup stacker
.Servo form&cut.Servo Plug assist.Servo Index
.High pressure cooling system
.Touch screen and PLC control
.PID type individual controlled temperature zones
.Cam-controlled drive technology ensures 100% precise repetition of each cycle
.Independent air-conditioning electrical cabinet
.Automatic central grease lubrication and special chain lubrication
.Highly stressed parts are of very robust design, with casting of forming tables
