LX3122 HF-IM-C 2in1/3in1/4in1 thermoforming machine
{-stralt-}

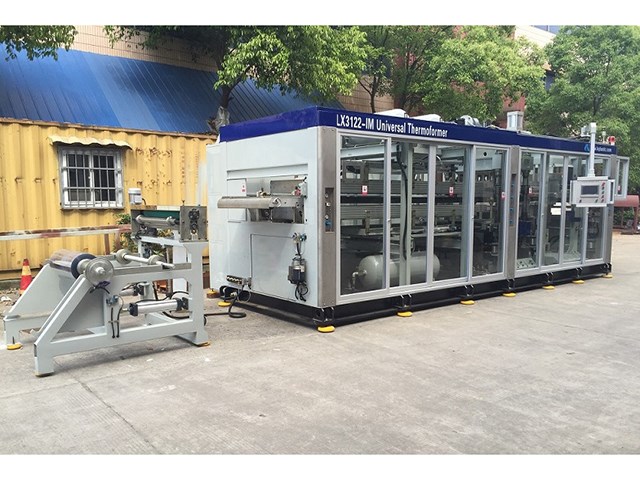

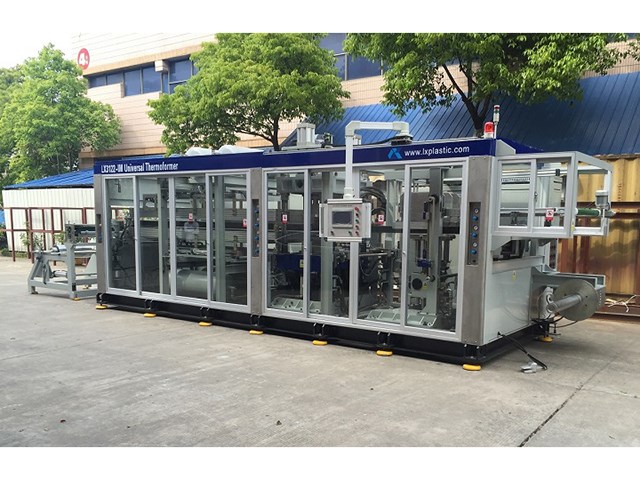

LX3122 HF-IM-C 2in1/3in1/4in1 thermoforming machine

*2in1: Trim-in-place with rules steel knife .
*3in1: Form +Trim+Stack.
*4in1: Form+Hole-Punch+Trim+stack.
*Full Servo

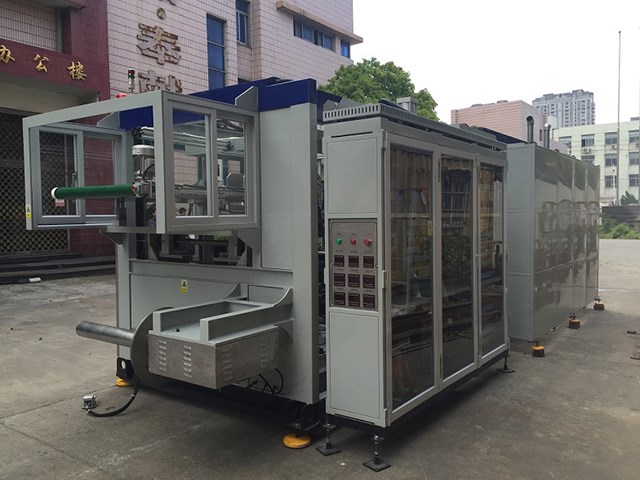

*Up-stacker/Robot Stacker/A/B Robot Stacker

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】
【Next Products】
Description

Machine Video :

LX3122 IM 2in1 Video : 1 , 2 , 3 , 4 , 5 , 6 , 7 , 8 , 9 ,

LX3122 IM 3in1 Video : 1 , 2 , 3 , 4 , 5 , 6 , 7

LX3122 IM4in1 Video : 1 , 2 , 3 , 4 , 5 , 6


Design Feature

Form+Cut+Hole-punch+Stack in the same machine

Cut/Form in the same forming station for identical trimming

Floating knife for cutting tool is available for post-trim

Full Servo Drive minimizes power consumption and make operation easier with higer accuracy

Positive forming and Negative forming(air pressure forming plus vacuuming forming)

PID temperature control ensures precise temperature accuracy

Automatic lubrication and center oiling

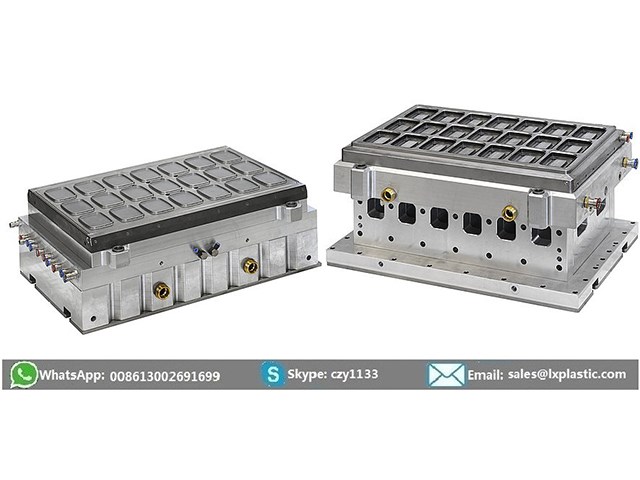

Lateral quick changing tools(moulds) from one side of machine

Use of Steel rule knife minimizes cost

Specification
LX3122IM
LX2812IM

Forming Area

800*580mmMax.

760*380mm Max.

Depth of Draw under sheet

120 mm Max (others at request)

130mm Max.

Depth of Draw above sheet

30 mm Max. (others at request)

30mm Max.

Clamping force

600KN

350KN

Suitable material

PP PET PS PVC BOPS

PP PET PS PVC

Sheet Width

460- 850 mm

460-800MM

Material Thickness Range

0.2-1.5mm

0.2-1.5mm

Material Roll Diameter

1000 Max

1000 Max.

Dry run Speed

40cycles/min Max.

40cycles/min Max.

Power Supply

3-N AC380V±15V ,

3-N AC380V±15V

Power consumption

Approx.35kilowatts/hr

Approx.30kilowatts/hr

Air Pressure

0.7Mpa

0.7Mpa

Air Consumption

2500 Liters/min

2500 Liters/min

Cooling Water Consumption

13 Liters/min 15° -20°C

13 Liters/min 15° - 20°C

Dimensions

8m*2.2m*2.2(L*W*H)

7m*2.2*22

FAQ

What can IM Model do?

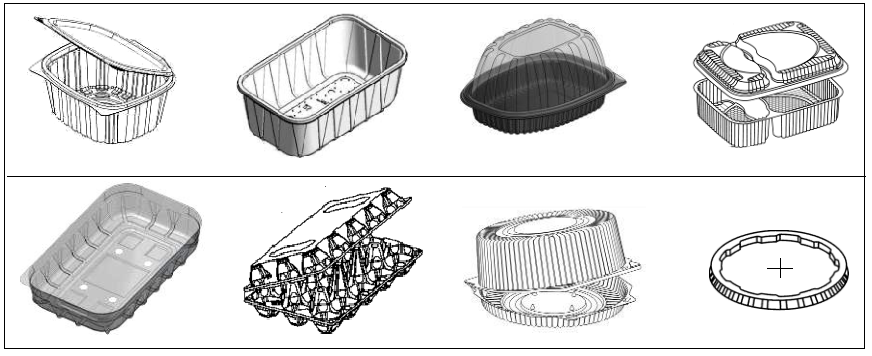

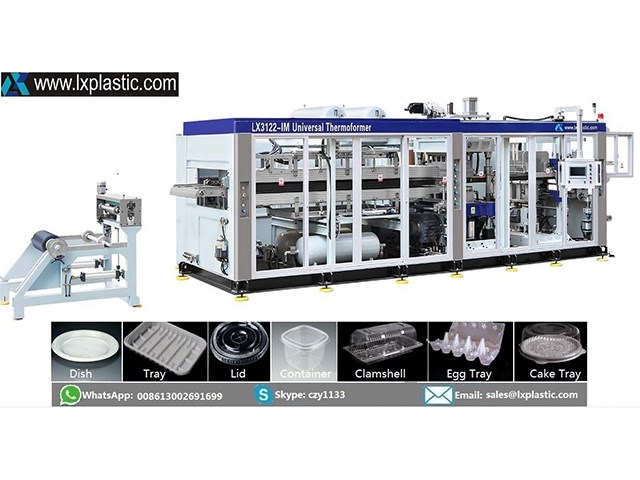

It produces clamshell,container,lid, tray and dish with rolled-lip

What material IM mdoel can process?

It can mainly process PP PET BOPS PS PVC sheet

What is MAX. speed of praticl production?

As far as we tested, it is 33cycles/min for 0.2mm PET . for higher speed , we still need more testing

What is Trim-in-place and what is post-trim?

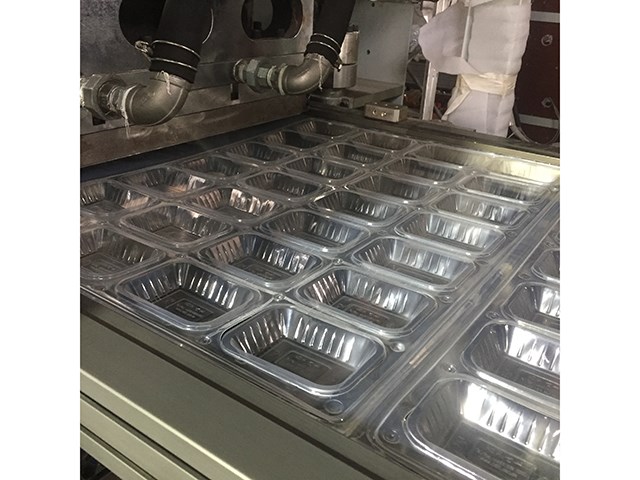

Trim-in-place means forming and cutting inside the same mould .

Post-trim means cutting after forming.

what is different among IM 2in1 ,IM 3in1 and IM 4in1?

*IM-2in1 does forming and cutting in the same station with steel-rule-knife.

It can makes any packaging if there is no requirement of making holes on it.

*IM-3in1=IM-2in1+ second cut-press , it can do trim-in-place process and post-trim process . it means it can do cutting after forming station and in forming station.

*IM-4in1=IM-2in1 +second cut-press +thrid cut-press, it can do trim-in-place and post-trim process and also do hole-punching .

6. what is the advantage of trim-in-place ?

* bring indentical trimming for parts made in film with high shrinkage rate like pure PP .

* no wasting time on adjustting accuracy of trimming

*no wasting money to make an independent cutting tool
