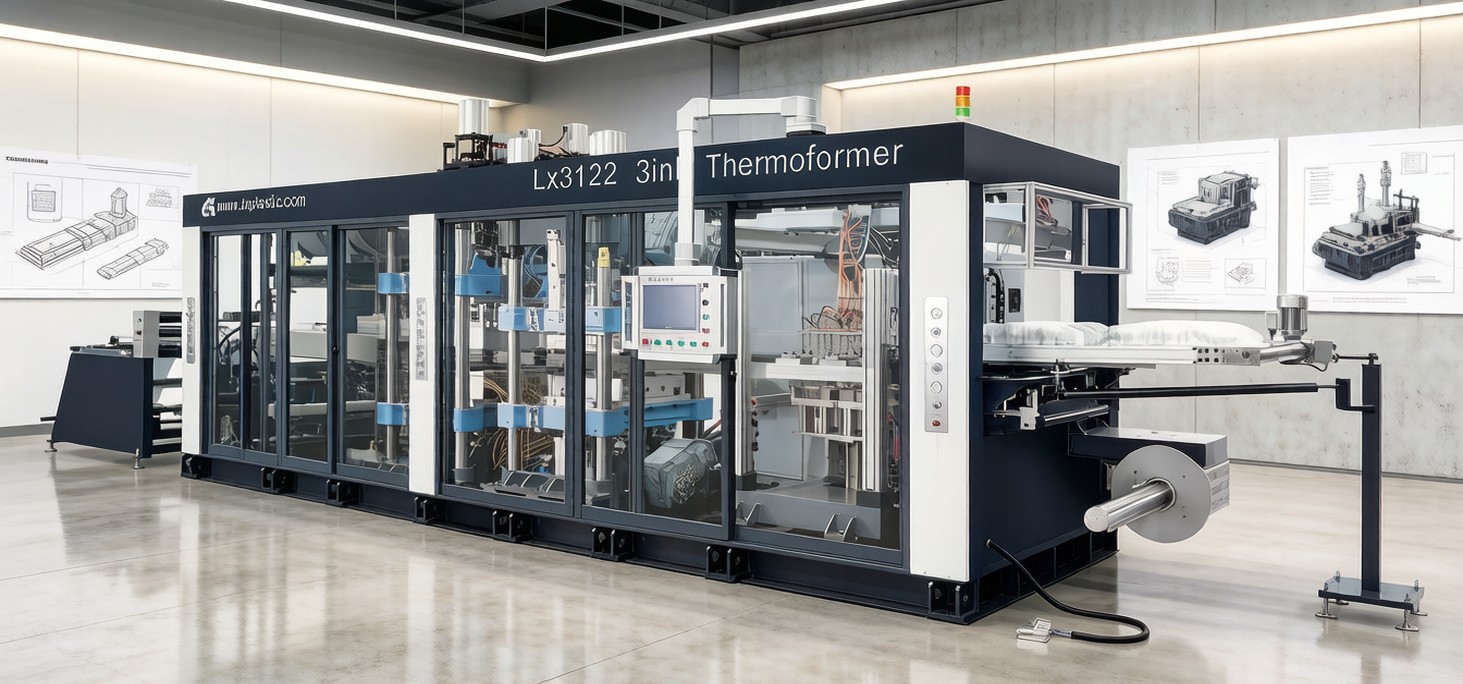

LX 3in1&4in1Thermoforming Machine is a full servo and complete automatic thermoforming machine which can produce all kinds of disposable packaging like tray,lid,container, clamshell etc. in PP PET BOPS HIPS PVC etc. plastic sheet.it is a post-trim type machine which can perform forming, punching, cutting ,stacking and counting in separate stations with combining a function of cut-in-place into forming station with steel-rule-knife to perform form &cut at the same station.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | |
| 【Next Products】 | |

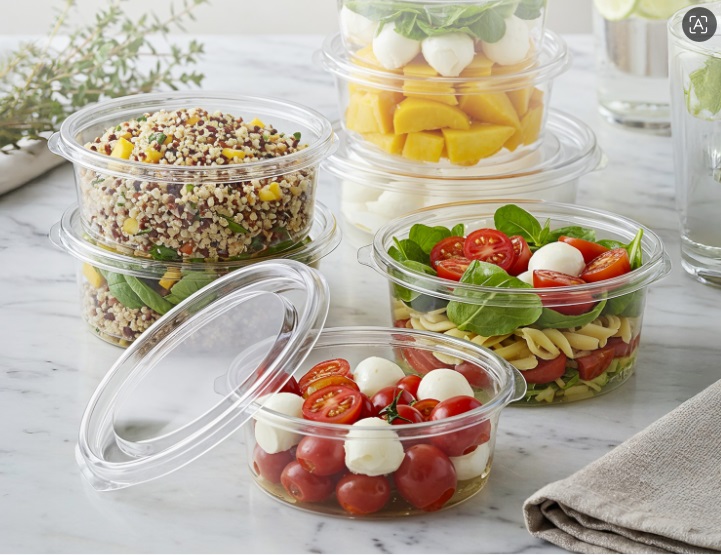

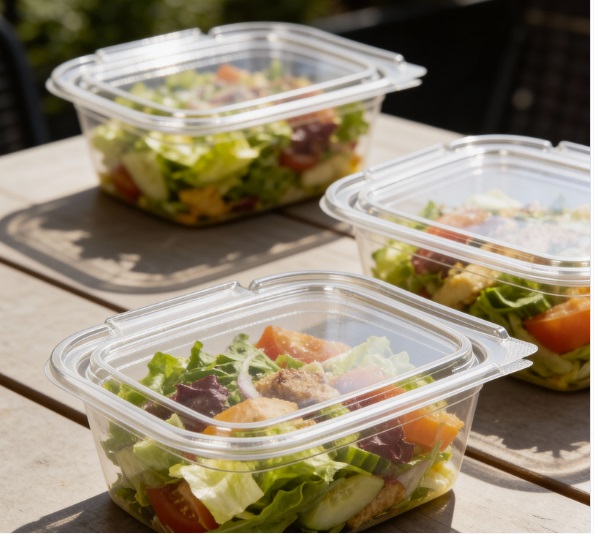

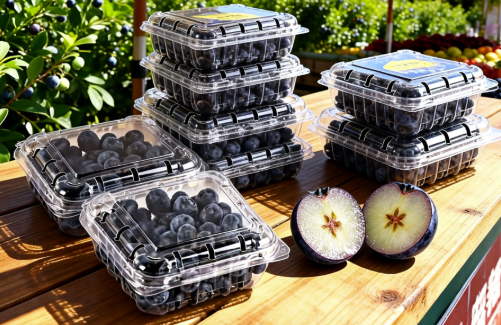

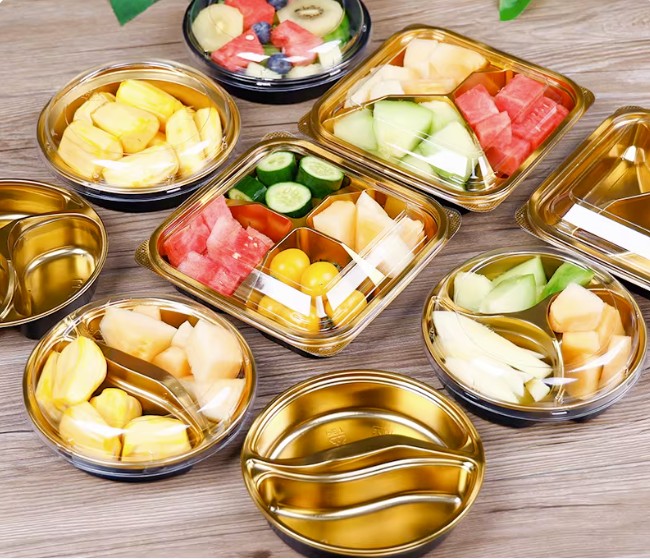

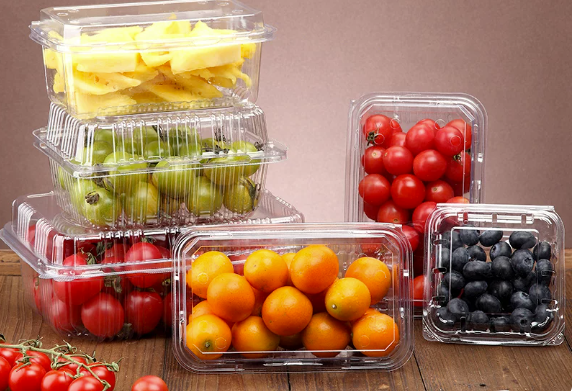

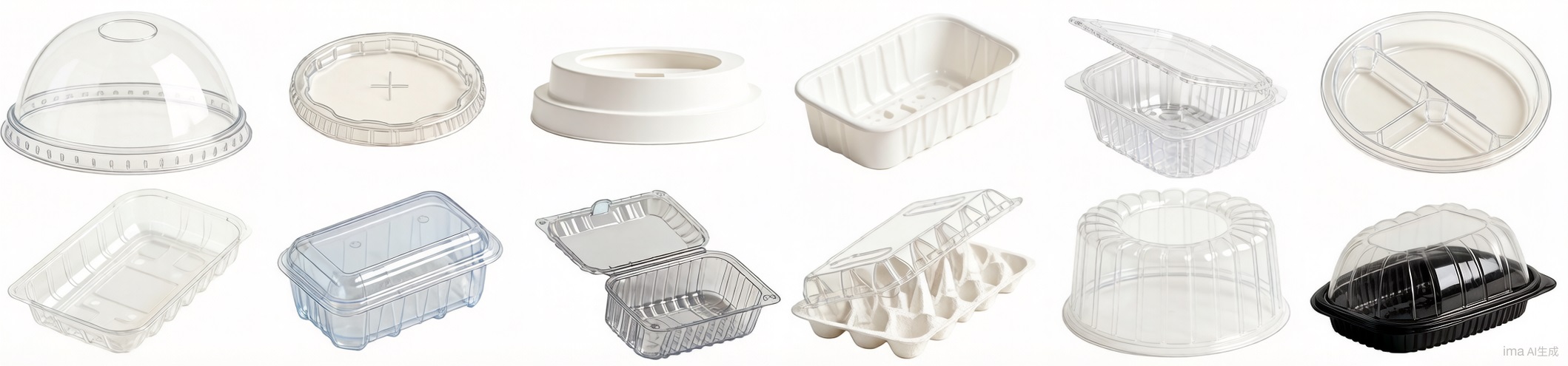

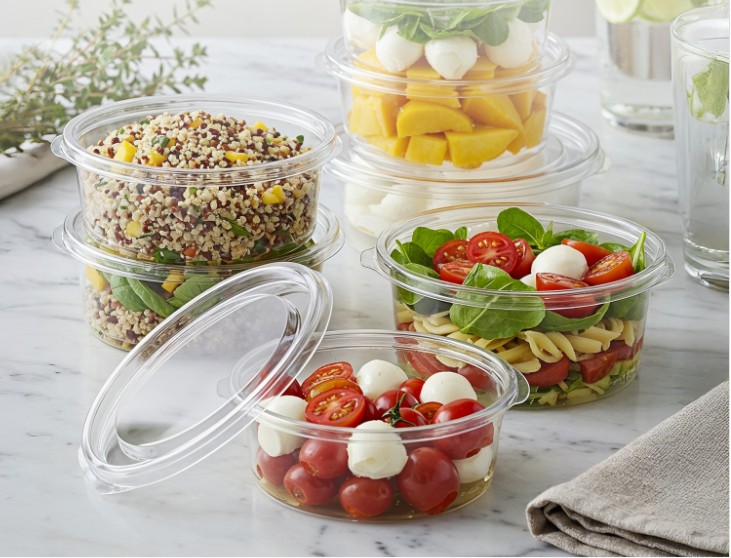

What can it make/功能
Main Technical Data/参数
Specification
L Model
M model
S Model
Forming area
820*620/750*650mm
700*500mm
650*450
Forming Depth
Down130mm/Up130mm
Down120mm/Up100mm.
Down100mm/Up80mm .
Suitable material
PP PS PET PLA
PP PS PET PLA
PP PS PET PLA
Material Thickness
0.2- 1.5mm
0.2-1.5mm
0.2-1.5mm
Dry Run Speed
50cycles/min Max.
50cycles/min Max.
50cycles/min Max.
Cut-Mode
Post-Trim/Trim-In-Place/None-Nick-Trim
Stack-Mode
Down-Stack,Up-Stack,Pick-Stack,Hop-Stack,Rotation-Stack,A/B Stack,In-line Pack
3in1&4in1 Thermoforming Machine for clamshell,tray,container,lid,dish and bowl

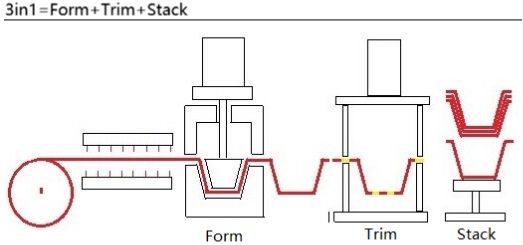

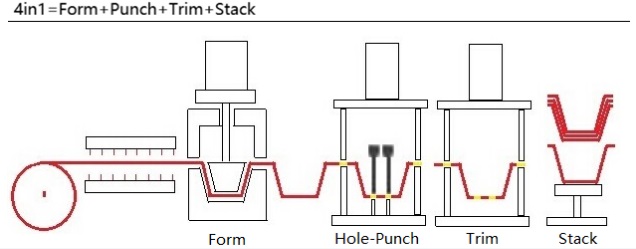

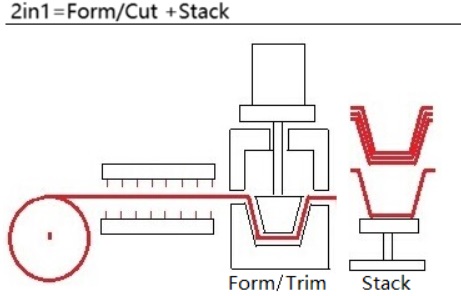

How it works /工作原理

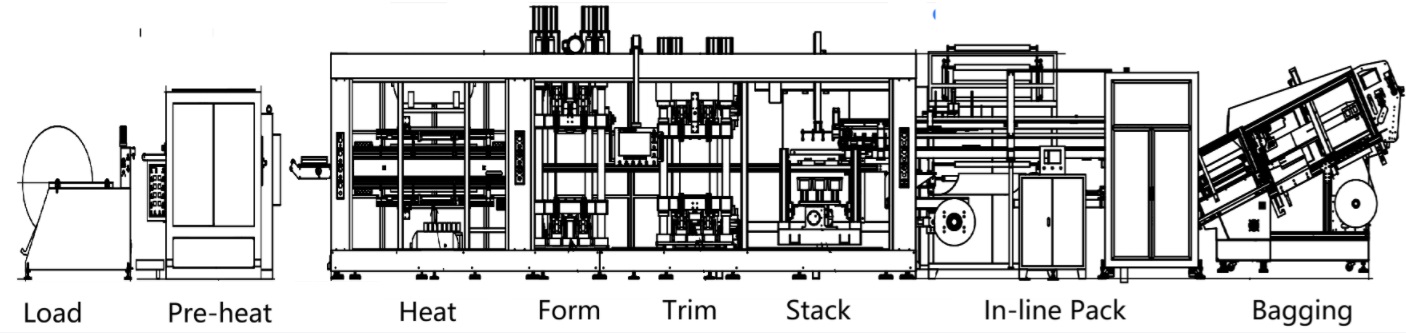

In-line Pack /联机
Option&Auxiliary/辅机
|
In-line Grinder with cyclone |
|
in-line packing for lid and small tray |
|
PP Pre-heater |
|
IM function (In-Mould-Cut for identical trimming) |
|
Sliding Stacker( For in-mould stacking without nick /None-Nick-Trim ) |
Design Feature/特色
Form+Punch+Cut+Stack
Trim-in-place with steel-rule-knife is available for identical trimming
Floating knife for cutting tool for post-trim
Positive forming and Negative forming .
Servo form&cut.Servo Plug assist.Servo Index
.High pressure cooling system
.Touch screen and PLC control
.Independent air-conditioning electrical cabinet
.Automatic central grease lubrication and special chain lubrication
Most of Components are from multi-national suppliers assures a reliability and worldwide compatibility
1-2days for knife making， minimizing cost of operation
