In-Line Grinder
{-stralt-}
In-Line Grinder

Automatically pulling and grinding plastic web of scrap directly from thermoforming machine without any manually feeding .

Skype Online E-mail Us
Bookmark this PDF Download
【Prev Products】
【Next Products】
Description


Machine Video: 1 , 2 , 3 , 4

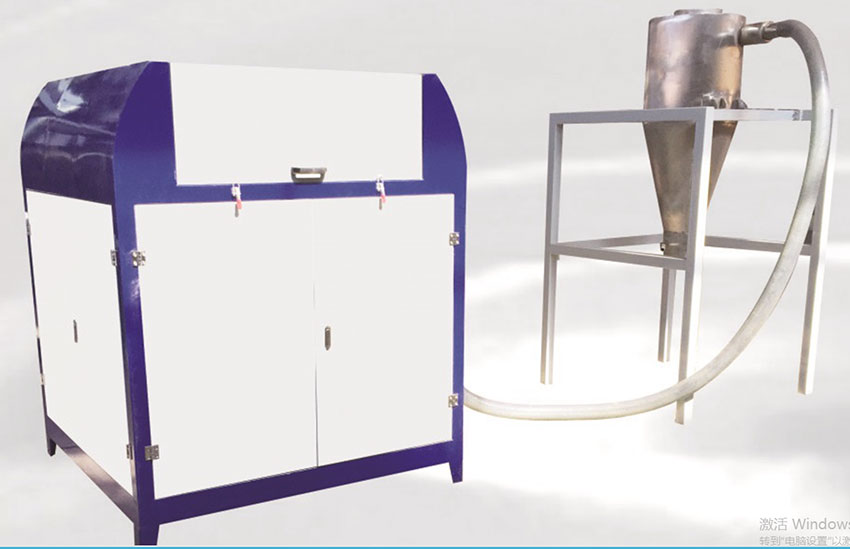

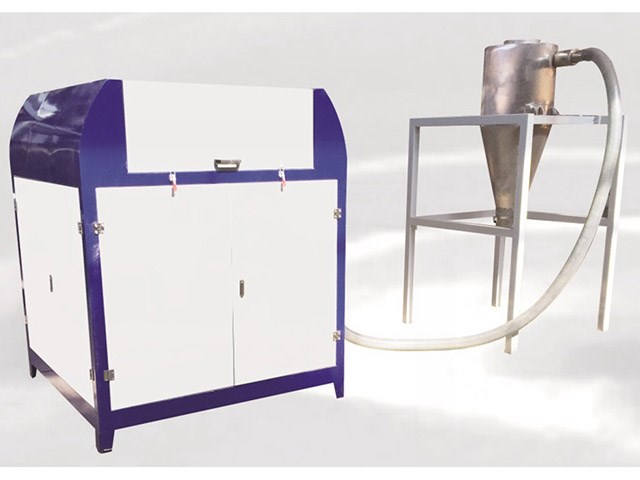

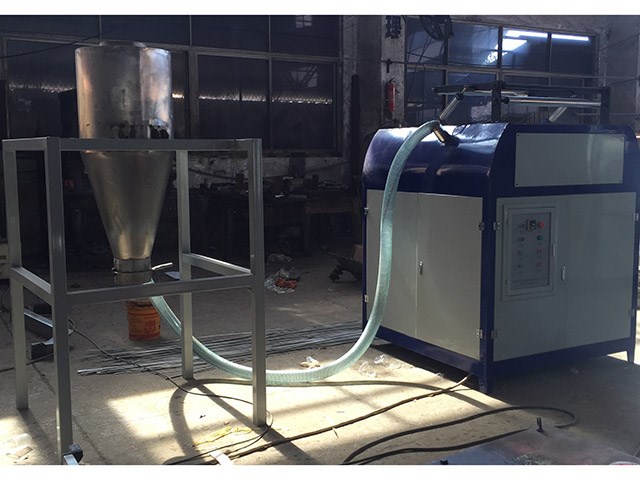

In-Line Grinder with Cyclone

In-Line Grinder with Cyclone



Feature:

One grinder can fit from 1set of thermoforming machine or 2 sets of thermoforming machines

With cyclone, grinded scrap can be automatically transported to mixer or other tank.

Sound Proof

Water cooling

Security system for safe work

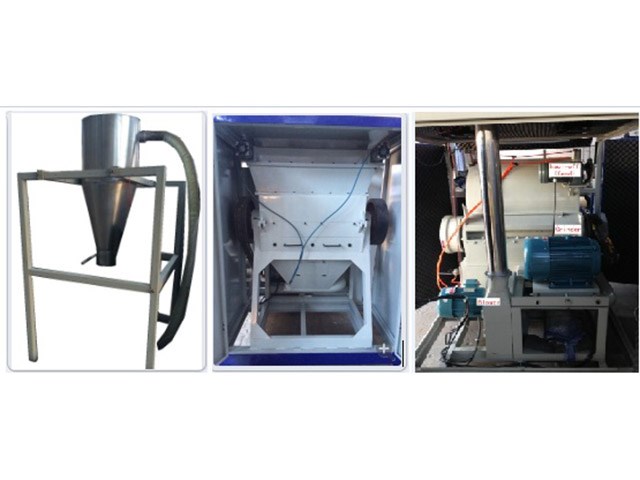

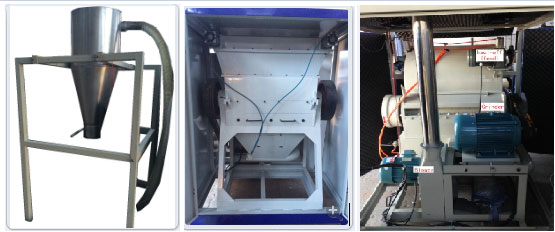

Configuration

800mm Grinder

Operation Panel

tansporting system with

Cyclone

Pulling System

Cyclone Frame

Model

LX800 in-line grinder

Pulling speed

0-50m/min

Output

300-500kg/h

Grinding Motor

7-11kw

Feed Motor

0.75kw

Blower Motor

5.5kw

Rotation Blades

6

Static Blades

4

Power Supply

3-N AC380V±15V (change is available on extra change )

Screen hole

12-22mm

Weight

600kg

Dimension

1960*1410*1800mm
