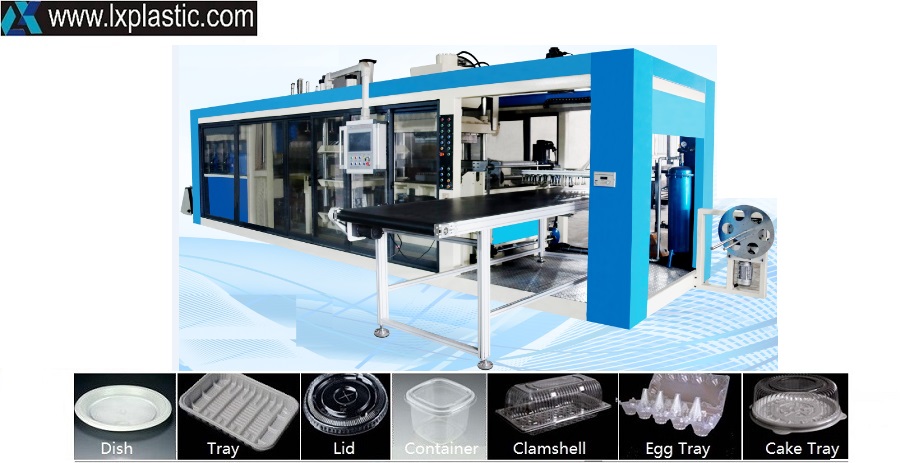

BeliefAutomatic Vacuum forming machine is suitable for the fully automatic production of electronics packages, cosmetics packages ,food packages etc. with forming,trimming,counting ,stacking and conveying in one cycle.
 Skype Online
|
E-mail Us
|
Bookmark this
|
 PDF Download
|
| 【Prev Products】 | |
| 【Next Products】 | |
Design Feature

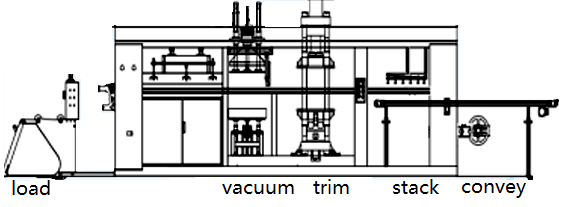

.Form+Cut+Stact in the same machine
.Vacuum forming with cheap tooling like wooden mould ,copper mold and plastor mold
.Use of Steel rule knife minimizes cost
.Floating knife for cutting tool is available for post-trim
.Precise index accuracy utilizing Servo drive system, minimizing plastic scrap
.Accessing to digitalized functions by pressing touch screen
.Touch screen and programmable PLC control
|
Specification |
|
|
Forming Area |
600*780mm Max. |
|
Depth of Draw under sheet |
100 mm Max |
|
Depth of Draw above sheet |
80 mm Max. |
|
Clamping force |
650KN |
|
Suitable material |
PET PS PVC (Speical PP) |
|
Sheet Width |
460- 730 mm |
|
Material Thickness Range |
0.2-1.5mm |
|
Material Roll Diameter |
1000 Max |
|
Dry run Speed |
5-12cycles/min Max. |
|
Power Supply |
3-N AC380V±15V ， |
|
Power consumption |
Approx.35kilowatts/hr |
|
Dimensions |
10.5m*2.2m*2.2(L*W*H) |
