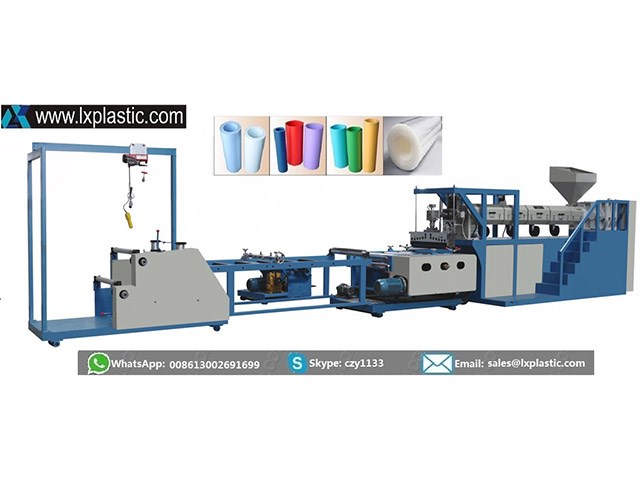

LX800-1-HC mono layer PP PS sheet extrusion line
{-stralt-}
Description

A. PRODUCTS

PP , PS ,HIPS roll of sheet

B.DESCRIPTION

a. Sheet width : 800mm

b. Sheet thickness: 0.2-2mm

c. Total Power: 114.15KW ,

d. Power Supply : 380V/50Hz

e. Production: PP PS HIPS sheet

f.Output: Mono layer: 180kg/hr Max.

C.CONFIGURATION

Configuration

Extruder

Operation Console and electric cabinet

Horizontal type Calendar of three rollers

Hydraulic station for screen charger

scrap re-winder /in-line scrap grinder

Haul-off unit

T-Die

Single rewinder


Extra Configuration

Melt pump with pressure sensors

Touch screen for setting temperature

Individual motor for each roller

360 degree Rotation Double re-winder / Traveling Crane Double re-winder

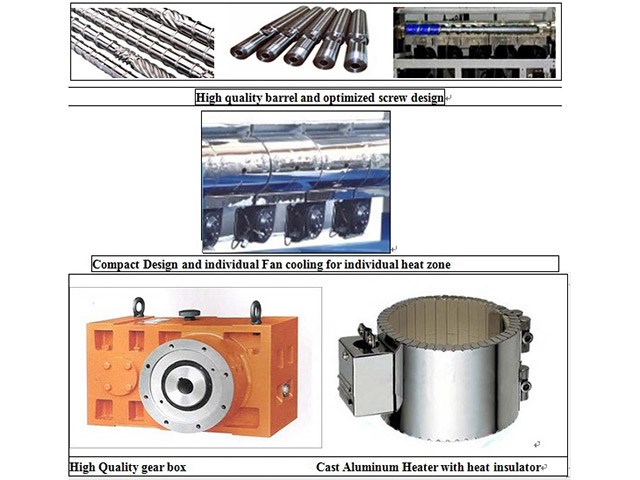

1.Extruder




High quality barrel and optimized screw design
Compact Design and individual Fan cooling for individual heat zone


High Quality “GuoMao” brand gear box
Cast Alumium Heater with heat insulator

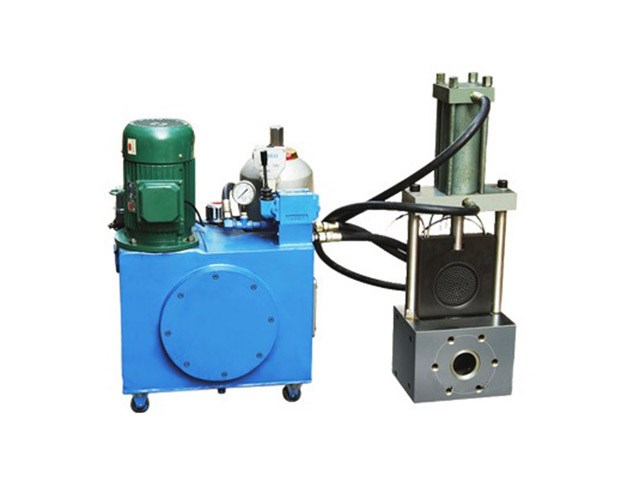

2.Screen charger

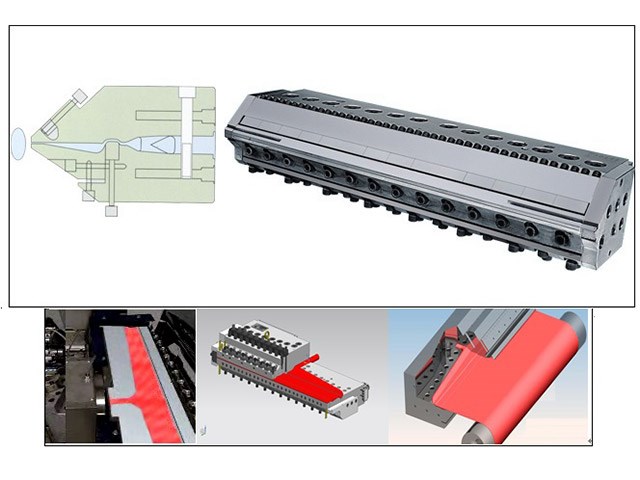

3. T-Die

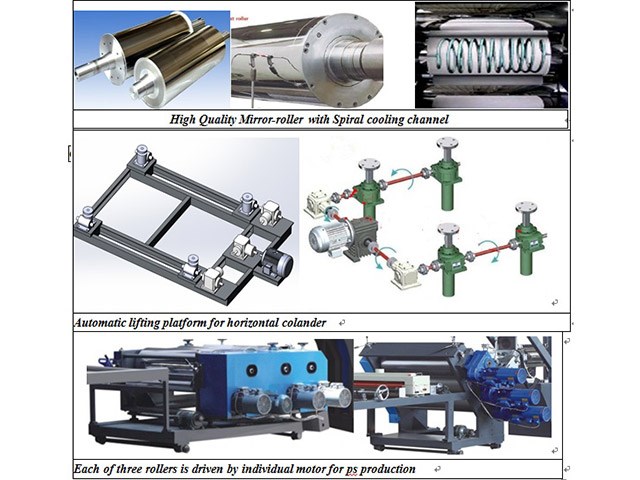

4. Calander of 3 rollers




High Quality Mirror-roller with Spiral cooling channel



Automatic lifting platform for horizontal colander



Each of three rollers is driven by individual motor for ps production

5. Melt Pump (option)


6.double rewinder (option)

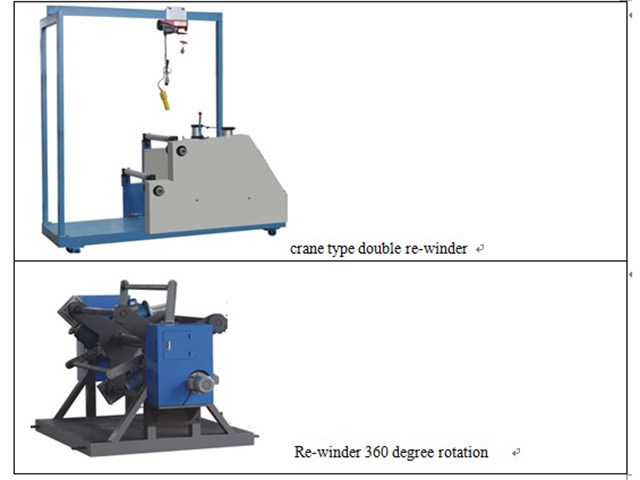

Double Re-winder


crane type double re-winder

Re-winder 360 degree rotation
